Try Alt-Ergo in Your Browser

Date: 2014-07-15
Category: Formal Methods



Recently, we worked on an online Javascript-based serverless version of the Alt-Ergo SMT solver. In what follows, we will explain the principle of this version of Alt-Ergo, show how it can be used on a realistic example and compare its performances with bytecode and native binaries of Alt-Ergo.

Compilation

"Try Alt-Ergo" is a Javascript-based version of Alt-Ergo that can be run on compatible browsers (eg. Firefox, Chromium) without requiring a server for computations. It is obtained by compiling the bytecode executable of the solver into Javascript thanks to js_of_ocaml. The .js file is generated following the scheme given below. Roughly speaking, it consists of three steps:

  • A new frontend (main_js.ml) is added to the sources of Alt-Ergo. This file contains some glue code that allows the generated .js file to interact with an HTML file (insertion of buttons, modification of DIV contents, ...)
  • The sources of Alt-Ergo and main_js.ml are compiled with ocamlc. The compilation make use of a preprocessor provided by js_of_ocaml.
  • The js_of_ocaml compiler is used to transform the bytecode generated by ocaml into a javascript file.

try-alt-ergo-compilation

The .js file is then plugged into an HTML file that fits with the glue code inserted in main_js.ml.

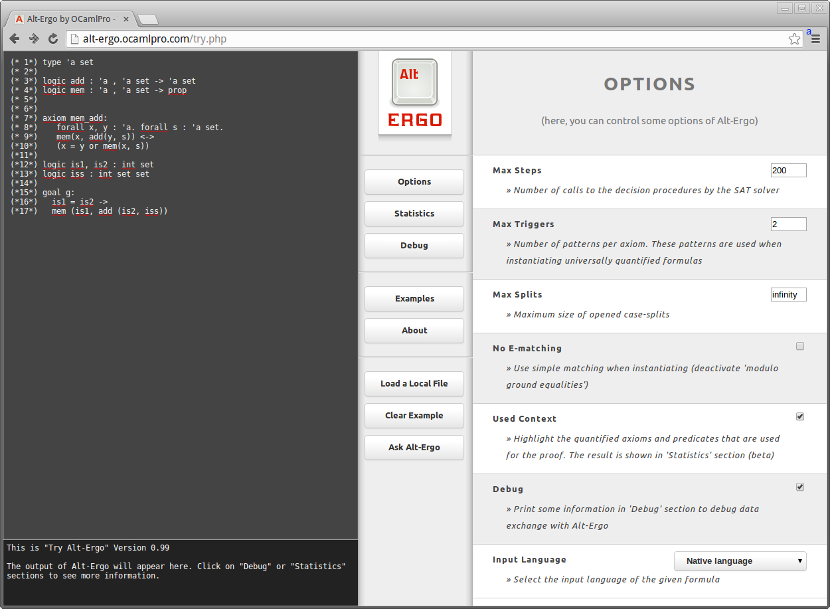

General overview of the HTML interface

The HTML interface is made of four panels:

  • The left panel is an editable textarea in which you can write/past/load the formula you want to prove.
  • The bottom-left panel is used to display the answer of Alt-Ergo.
  • The middle panel contains a set of buttons that allow to interact with both the interface and the javascript version of Alt-Ergo.
  • The right panel is used to display different views. The default view ("Options") allows to control the options of Alt-Ergo. When a formula is proved valid, one may switch to "Statistics" view, thanks to the corresponding button in the middle, to see what are the quantified axioms and predicates that are used/instantiated during the proof. The "Debug" view shows the information received by main_js.ml from the HTML interface. The "Examples" view shows some basic examples in Alt-Ergo's native input language that can be loaded in the left panel by a simple click.

try-alt-ergo-interface

A step-by-step example

Let us see how "Try Alt-Ergo" works on a formula translated from Atelier-B in the context of the BWare project:

  • First, open Try Alt-Ergo in a new tab/window.
  • Download the formula try-alt-ergo.why. This formula contains 177 quantified axioms and 132 predicates.
  • Click on the "Load a Local File" button of Try alt-ergo's interface and load the example into the left panel.
  • Go to "Options" panel and set the maximum number of steps to 1000, the maximum number of triggers to 1, and deactivate E-matching
  • Click on "Ask Alt-Ergo" button and wait approximately 60 seconds (depending on your computer). On my laptop, Alt-Ergo given the following answer after, approximately, 40 seconds.
# Alt-Ergo's answer: Valid (37.2260 seconds) (222 steps)
  • Now, you can navigate into the "Statistics" panel to see the quantified axioms and predicates that are instantiated during the proof, those that are potentially used, and those that have never been instantiated.

Limitations

  • The Javascript version is slower than native and bytecode versions. In fact, bytecode executable is 4 times faster and native executable is 42 times faster than "Try Alt-Ergo", as shown below.
./alt-ergo.byte -nb-triggers 1 -no-Ematching -max-split infinity -save-used-context try-alt-ergo.why
File "/home/mi/Bureau/po.why", line 3017, characters 1-2450:Valid (9.3105) (222)

./alt-ergo.opt -nb-triggers 1 -no-Ematching -max-split infinity -save-used-context try-alt-ergo.why
File "/home/mi/Bureau/po.why", line 3017, characters 1-2450:Valid (0.8750) (222)
  • Since it is not possible to set a time limit in javascript. The "steps" mechanism should be used instead. This limit controls the number of calls to the decision procedure component of the solver.
  • Currently, the integration of external plugins (such as our miniSAT-based SAT solver) is not supported
  • Compared to AltGr-Ergo, statistics and debug information are only shown at the end of the execution.
  • "Asking Alt-Ergo" may report "syntax error" on well formed files for Safari and Midori users. The "Load a Local File" button is not working on Opera browser.

[ Acknowledgement: this work is financially supported by the BWare project. ]
